Description

The all-in-one Solar Power Solution

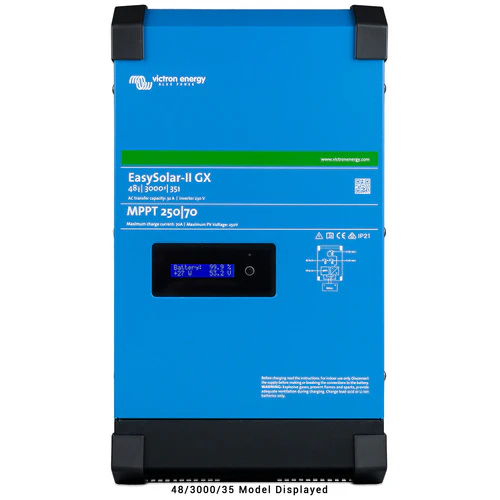

The Victron EasySolar-II GX integrates the following elements:

A MultiPlus-II 48/5000/70-50 inverter/charger
A SmartSolar 250/100 MPPT -Tr solar charge controller
A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.

Solar Charge Controller
The DC output of the SmartSolar 250/100 MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX Device
The integrated GX device includes:

A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
A USB port
An Ethernet port
A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

Specifications:

Amps: 50.0 Amps
Model: EasySolar 48/5000/70-50
AC Input Voltage: 187-265VAC
AC Input Frequency Range: 45-65Hz
Peak Power 9000W
Operating Temperature Range: -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m
Humidity: Max. 95%
Output Power: 4000W (continuous output power at 25­­°C) | 3700W (continuous output power at 40­­°C) | 3000W (continuous output power at 65­­°C)
Net Weight (kg): 38.6 Kg
Charge voltage ‘absorption’: 57.6V
Charge Voltage Float – Wet (25 degrees)**: 55.2V
Charge voltage ‘storage’: 52.8V
Input Voltage: 38-66V
Product Dimensions (mm) LxWxD: 604 x 323 x 253
