Description

Features

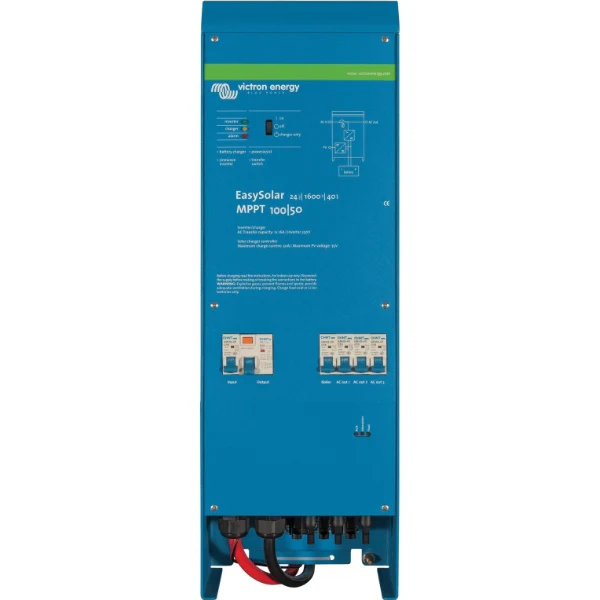

All-in-one solar power solution: Combines MPPT solar charge controller, inverter/charger, and AC distribution.
Solar charge controller: Blue Solar MPPT 100/50 with up to three strings of PV panels connectable.
Inverter/Charger: MultiPlus Compact 24/1600/40.
AC distribution: Includes a RCD (30 mA/16 A) and four AC outputs protected by circuit breakers.
PowerAssist: Protects utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software: Configurable for various grid-interactive or stand-alone applications.
VE.Direct interface: For monitoring and configuration.
Specifications
Inverter/Charger:
Input voltage range: 19 – 33V
Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1%
Continuous output power at 25°C: 1600VA / 1300W
Continuous output power at 40°C: 1200W
Peak power: 3000W
Maximum efficiency: 94%
Zero load power: 10W
Charge voltage ‘absorption’: 28.8V
Charge voltage ‘float’: 27.6V
Charge current: 40A
Solar Charge Controller (MPPT 100/50):
Maximum output current: 50A
Maximum PV power: 1400W
Maximum PV open circuit voltage: 100V
Maximum efficiency: 98%
Charge voltage ‘absorption’: 28.8V
Charge voltage ‘float’: 27.6V
General:
Operating temperature range: -20 to +50°C (fan assisted cooling)
Humidity: max 95% (non-condensing)
Weight: 15kg
Dimensions (HxWxD): 745 x 214 x 110mm
