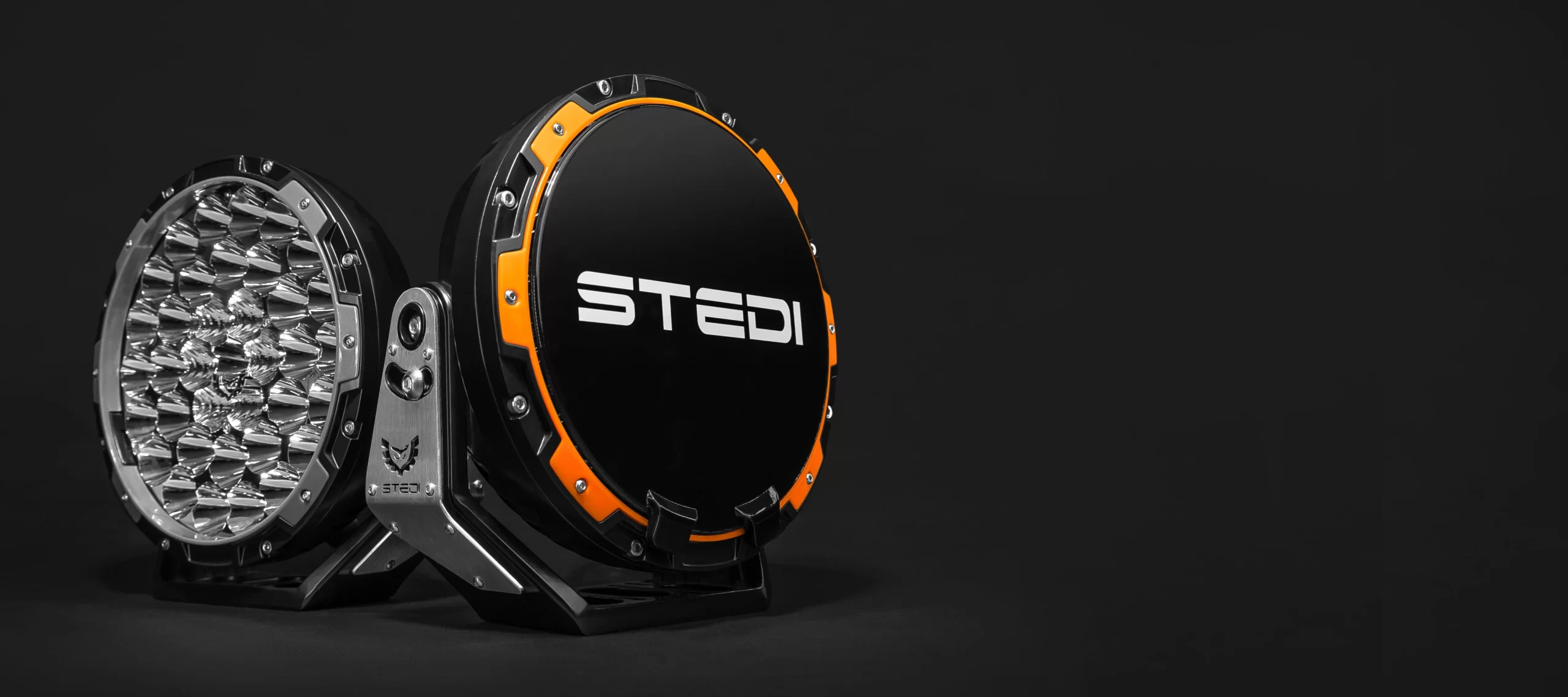

TYPE-X™ PRO LED Driving Lights (Pair)

The STEDI TYPE-X™ PRO LED Driving Lights (Pair) is engineered for serious 4×4 and off-road use, giving you strong, dependable light output when you need it most on the track or the trail.

Tech Specs

• LED: 37 x Oslon High-Flux LED
• RAW LUMENS: 26,270 (Pair)
• TESTED LUMENS: 15,870 (Pair)
• AMP DRAW: 10.4A @ 13.2v (each)
• POWER DRAW: 137W
• CANDELA: 1,334,025cd
• BEAM PATTERN: 6 x 50° Spread / 31 x 5.8° Pencil Beam
• INGRESS PROTECTION: IP68 | Submersible up to 3m
• COLOUR TEMP (CCT): 5700K
• VOLTAGE COMPATIBILITY: 12v & 24v
• LUMEN MAINTENANCE: 50,000 LM-80
• WEIGHT: 2.860kg (each)
• OPERATING TEMPERATURE: -40°C to 60°C

What’s Included

• 2 x STEDI Type-X PRO LED Driving Lights
• 2 x Protective STEDI Black Out Covers
• 2 x Grey Colour Rings
• 2 x Orange Coloured Rings
• 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
• Complete Stainless Steel fastener kit.
• Wiring & Fitting Instructions
