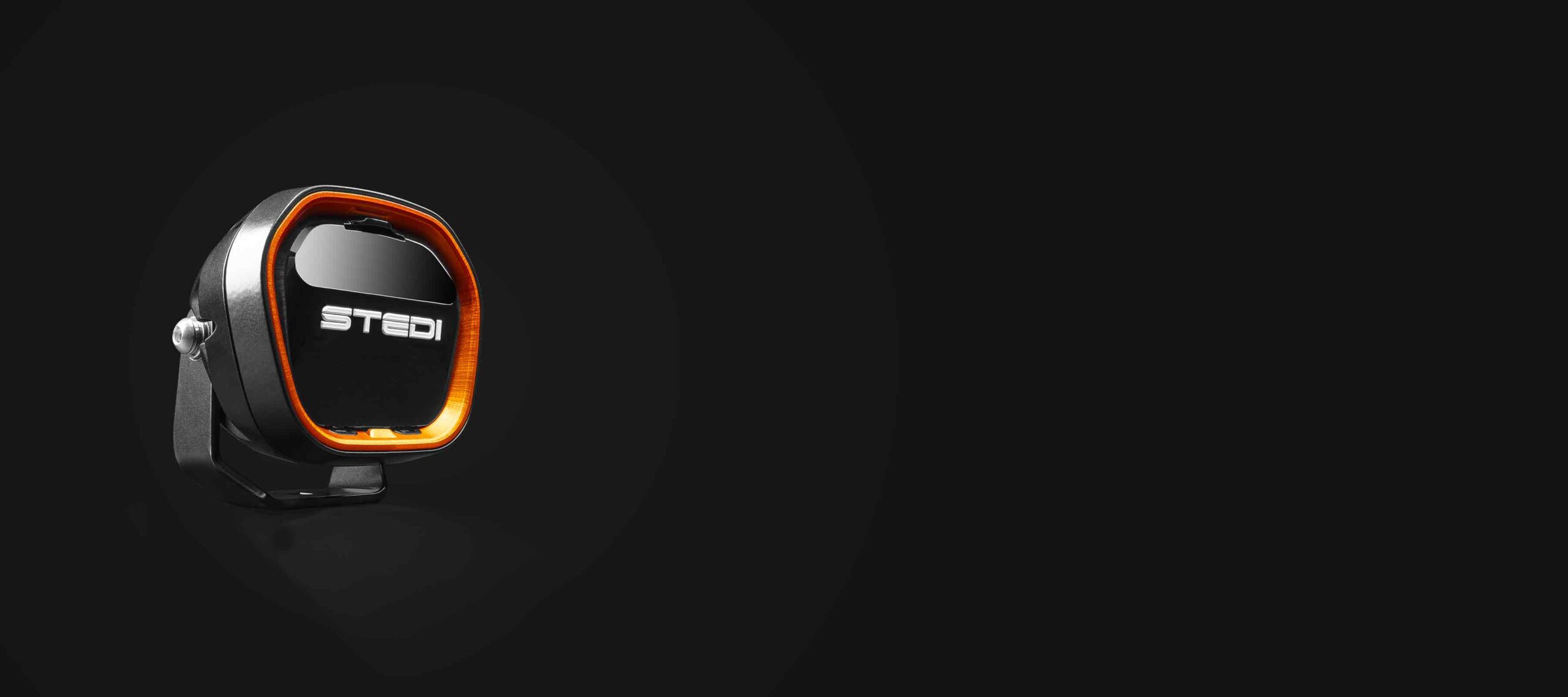

TYPE-X™ EVO MINI 4 Inch Spot Beam (Single)

The STEDI TYPE-X™ EVO MINI 4 Inch Spot Beam (Single) is engineered for serious 4×4 and off-road use, giving you strong, dependable light output when you need it most on the track or the trail.

Tech Specs

• LED: 10 x CREE XPP LED (each)
• RAW LUMENS: 3,700 (each)
• TESTED LUMENS: 2,500 (each)
• AMP DRAW: 2.7A @ 12v / 1.35A @ 24V (each)
• POWER DRAW: 27W
• CANDELA: 129,000 (each) / 258,000 (pair)
• BEAM PATTERN: 10 x 5° Pencil Beam
• INGRESS PROTECTION: IP68 | Submersible up to 3m
• COLOUR TEMP (CCT): 5000K
• LUMEN MAINTENANCE: 30,000 LM-80
• VOLTAGE COMPATIBILITY: 12v & 24v
• WEIGHT: 0.78kg (each)
• OPERATING TEMPERATURE: -40°C to 60°C

What’s Included

• 1 x STEDI Type-X™ MINI (4 inch) EVO LED Driving Light Spot Beam
• 1 x Protective STEDI Black Out Cover
• 1 x Grey Colour Fascia
• 1 x Orange Colour Fascia
• 1 x Type-X™ 4 Inch EVO Bag
• Complete Bracket & Stainless Steel Fastener Kit
• Fitting Instructions
