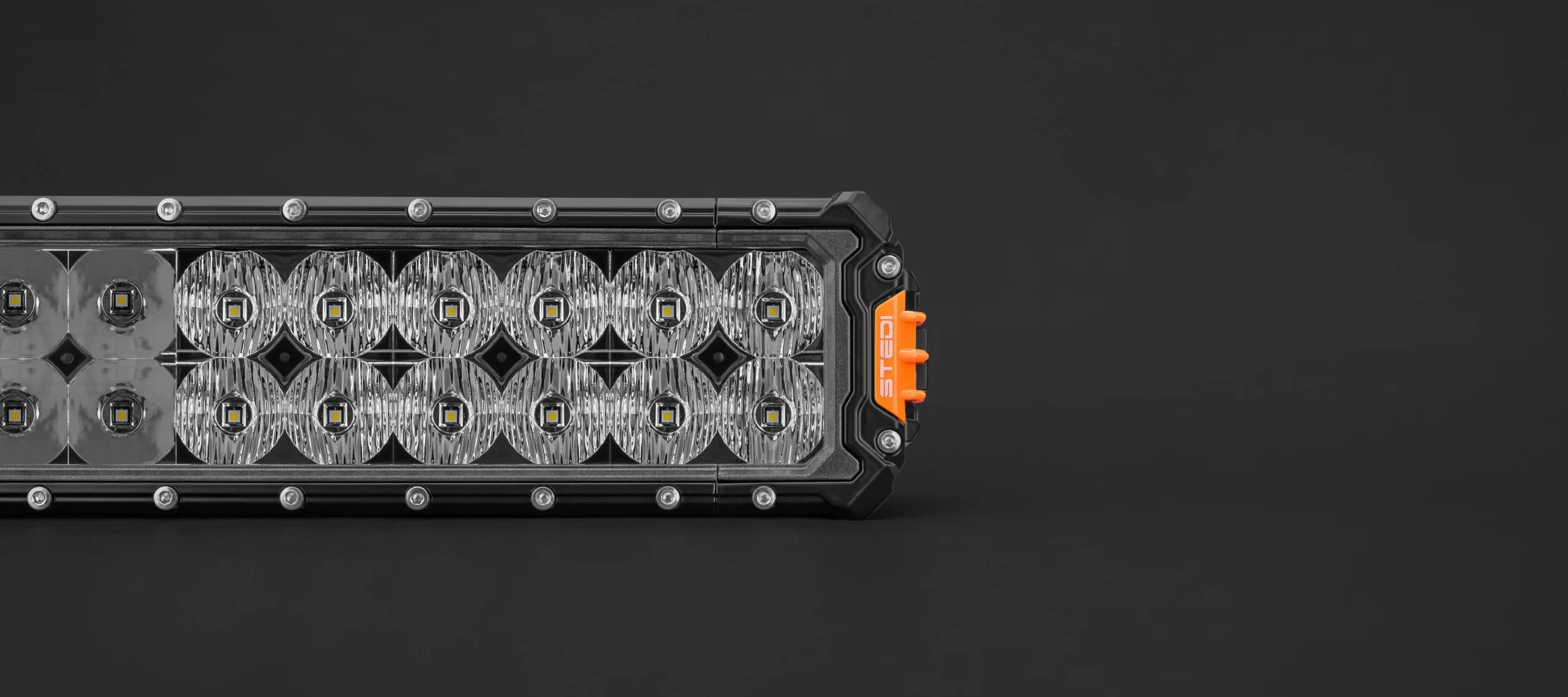

ST3303 PRO 39 Inch 60 LED Light Bar

The STEDI ST3303-PRO is a high-performance double-row LED light bar built around CREE XPL Hi-Intensity LEDs, delivering massive light volume and long beam throw. Featuring an IP68-rated A360 cast face plate, extruded aluminium heat sink, and Optical Grade Hard-Coated Lexan lens, it’s built to handle the toughest conditions. This is the flagship 60 LED variant — current draw is enormous (36.7A @ 13.6V), so it ships with a heavy-duty dual relay, dual fused wiring harness with two separate power cables and two separate breathers to handle the load.

Tech Specs

• LED: 60 x CREE XPL Hi-Intensity LED
• Voltage: 9V – 32V
• Current Draw: 36.7A @ 13.6V
• Raw Lumens: 65,700Lm
• Effective Lumens: 33,600Lm
• Peak Intensity: 919,681cd
• Colour Temp: 5700K
• Lens Material: Optical Grade, Hard-Coated Lexan
• Housing: A360.0 Cast face plate, extruded Aluminium heat sink
• Ingress Protection: IP68
• Beam Pattern: 50° Flood / 9° Spot
• Lifespan: 50,000hrs
• Operating Temp: -40°C ~ +150°C
• Weight: 5.2kg

What’s Included

• ST3303 PRO 39″ 60 LED Light Bar
• Easy Fit High Beam Wiring Harness with H4 & HB3 adapters
• 5 x Lower Mounting Brackets with Stainless Steel Fasteners
• 2 x 4mm thick Stainless Steel Side Brackets
• Orange & Grey End Caps
